Code Toolkit: Python, Spring 2026

Week 3 — Wednesday, February 4 — Class notes

Review of last week
Homework review
Interaction
Adding interactivity with Processing
More interaction concepts
New command: map()

I. Review of last week

Variables
A variable is a placeholder for a value. Instead of using a hard coded value, you use a name. The name holds a value. The advantage of doing this is that when using a name instead of hard-coded value, the value can change, and this can change the behavior of your program without changing your code.

The new syntax for doing this:

creatureX = 50
rect( creatureX, 100, 20, 50 )

New vocabulary:
- In Python you create a variable simply by assigning it a value, as in the first line above. (In many other programming languages that you may have seen, you need to first declare a variable before using it, but in Python this is not the case.)
- Then you can use that variable throughout your code.
You can use basic arithmetic to modify its value. For example using:
- + — addition
- - — subtraction
- * — multiplication
- / — division

And you can even make one variable depend on the value of others. For example:

creature1X = 100
creature2X = 500
midpoint = ( creature1X + creature2X ) / 2
# What would the value of midpoint be now?

Anytime you want something in your code to change (or vary) you need to add one ore more variables.
Last week we talked about how many variables you would need to represent a given composition or to implement a game like Pong. This is a useful first step in project planning.
Question: If you wanted to draw 3 creatures and you want them to move around on the screen horizontally and vertically, how many variables would you need? Highlight below to see the answer:
[ You would need 6 variables: one for the x and y values of each creature.]
And if you then also wanted the height of each creature to change? You would need three more.

II. Homework review

Let's look at some people's homework and fix some bugs together ...

Today in class we looked at Mara's homework, which you can find here: week03_mara.pyde

We read through the code trying to predict what this composition would look like. We debugged an issue in which there were two draw() blocks, which we resovled by merging them both into one.

We also talked a bit about different color systems and color spaces. If you want to use HSB mode in Processing, you can use the colorMode() command, which is documented here. Personally, I find HSB to be the much preferred color system to use when coding because of the nice way that hue allows us to specify a range of colors in the same family, and to more easily create smooth gradients. Documentation here.

Lastly, we saw how you could make a background with a dynamically changing color by using the background() command, combined with random(). You can find this code on line 36.

Thanks, Mara, for sharing!

(jump back up to table of contents)

III. Interaction

So far we have been working with Processing in what is known as static mode. We've been creating sketches that draw some shapes and then end.

Today we are going to introduce dynamic movement and respond to user input in what Processing refers to as interactive mode.

Let's think about ways of representing movement, motion, and gestures.

After World War II in the US, artists such as Jackson Pollock, Willem de Kooning, and others began making work in a style that came to be known as abstract expressionism. This group of work, mostly in painting, was understood to be using color and shape to create visual compositions that were often wholly abstract, not representations of any actual objects in the world, and were often interpretted as being highly expressive, depicting only feelings, energy, mood, or affect. Jackson Pollock in particular would often stand over his canvas and perform rhythmic or frenetic movements, of which his paintings were then a kind of record.

For this week, as we begin to learn about using code to respond to user input, let's keep in mind this idea of creating compositions that capture or represent movement and motion, and do so in a way that aim to be expressive of mood, affect, or feeling of the person creating them.
There is much precedent within digital art for thinking about these kinds of representations. Artists like Camille Utterback, Golan Levin, Zach Lieberman, and others, have created work in a genre often referred to as interactive art. (Is any art not actually interactive? hm...) These are works for which user input, in the form of movement, gesture, or play, is often necessary to enact or complete the piece.

Let's look at a couple examples from Utterback in particular:
- "Untitled 5" (2004), and
- "Untitled 6" (2005)
Both of these pieces use the movement and actions of viewers to generated colorful expressive compositions full of wide arrays of texture and form. These both use cameras and sophisticated techniques in motion capture and computer vision to sense movement in the bodies of viewers standing in front of a large screen. For this week we will focus only on mouse movement. But towards the end of the semester there will be the opportuntity to play with more advanced computer vision techniques.

Golan Levin's project Yellowtail (1998-2010) is another great example. This project was originally created before Processing existed, but then was re-written for Processing in 2007. At one time it was easy to run in a web browser, but due to various technology and business decisions, most browsers no longer support Java applets, and so it probably won't run for most of you. Levin has made it available as an iOS app for 99¢. Aside from buying the app, probably the easiest way to experience the piece today is by watching video documentation, for example here or here.

Bringing together these threads (interactive art, abstract expressionism) is a fun project simply called "Jackson Pollock" by designer Miltos Manetas: jacksonpollock.org. (In order to run it you may need to download the .swf file and double click on it.)

(jump back up to table of contents)

IV. Adding interactivity with Processing

Let's get started. Last week we saw how Processing comes with certain pre-defined variables. We talked for example about width and height: without explicitly setting these variables yourself,these variables will always hold values that correspond to the width and height of the draw window, even if the window is resized.

Another special variable that I mentioned was mouseX. This one tracks the left-right position of the mouse.

Let's try to create a sketch that draws a rectangle whose x position is determined by the position of the mouse. Our initial attempt might be something like this:
```
size(400,400)
background(255)
stroke(50,50,255)
fill(200,200,255)
rect(mouseX,150,100,100)
```
But that doesn't work. Why not?
This is using Processing's static mode. That means that this code runs once and then stops. In the language of digital media, we can say that it creates one single frame. It creates that frame as a single image that is frozen and un-moving. This was fine for the last two weeks but now we want to create movement ...

In the above snippet, that code draws a rectangle at the initial value of mouseX, which happens to be 0, and then it never draws another frame. So even though I may move the mouse aorund (and the variable mouseX may be updated) the sketch never has the chance to redraw the rectangle.

In nearly all visual media, the appearance of motion is achieved by displaying a sequence of static images in rapid succession, which then to our eyes gives the impression of movement. Like drawing a bouncing ball on a pad of paper and flipping through the pages, displaying many static images in sequence looks like motion. This is the premise for cinema, video, and nearly all animation and motion graphics: a sequence of static images that gives impression of movement.

From Black Voices, Black Joy: Flipbook Tutorial by Kenturah Davis (Sept 1, 2020)

Applying this pattern in Processing, this means that to achieve motion you will create code that draws a single static frame, then redraw that frame with some slight change, and do this again and again, over and over. These slight changes (or variations) are achieved by using variables.

So in other words, it's almost like the sketch creates a photograph, but we want to create a movie: multiple photographs that flash by in sequence.

a. New syntax: `setup()` and `draw()` blocks

In Processing, we do this with some new syntax:

def setup():
    # This block of code runs once

def draw():
    # This block of code runs many times

You use this in Processing in the following way:
```
# Create your variables here

def setup():
    # Initializing code that you want to run once goes here

def draw():
    # All drawing code goes here
```
This code snippet is like a pattern, or a template. A flexible code snippet that you can use and modify as necessary. For the next few weeks, the pattern of this code snippet will be the template that you will use as the starting point for all your work. So get used to typing it! Copy/paste it into your sketch window when you want to start a new project. You may want to memorize all this syntax, or maybe put it in a sticky note or some place that you can easily refer back to it. Maybe you want to simply refer back to this webpage. (You don't need to type my comments obviously. You will replace those with your own code.)
Now that we have introduced this new syntax, you have to pay close attention to indentation: the amount of spaces at the start of each line. Last week I told you that Python and Processing don't care about whitespace (spaces, newlines, tabs) and this is mostly true. But the one situation in which Python requires you to be very precise about whitespace is with indentation.

The term for these new code structures introduced here is a code block, or just a block. A block is a chunk of code that gets run together in some way. (We could say a block is kind of like a module in the language of the Lev Manovich text that we read.) We will look at several other types of code blocks in the coming weeks, but right now we're only looking at the setup() and draw() blocks.

In Python, you indicate the start of a new block with a colon (:), and then you indicate all the code in that block by indenting it with the same number of spaces. The block continues on every line until you stop indenting. We will be using 4 spaces. (You are allowed to use different numbers of spaces or tabs, as long as you are consistent. Programmers love to fight over which is the best to use. This semester we will use 4 spaces for consistency and later on you can do whatever you'd like!)

b. New command `print()`, and string concatenation

Let's demonstrate this with the following example:
```
def setup():
    print("Doing this once.")

def draw():
    print("Doing this many times.")
```

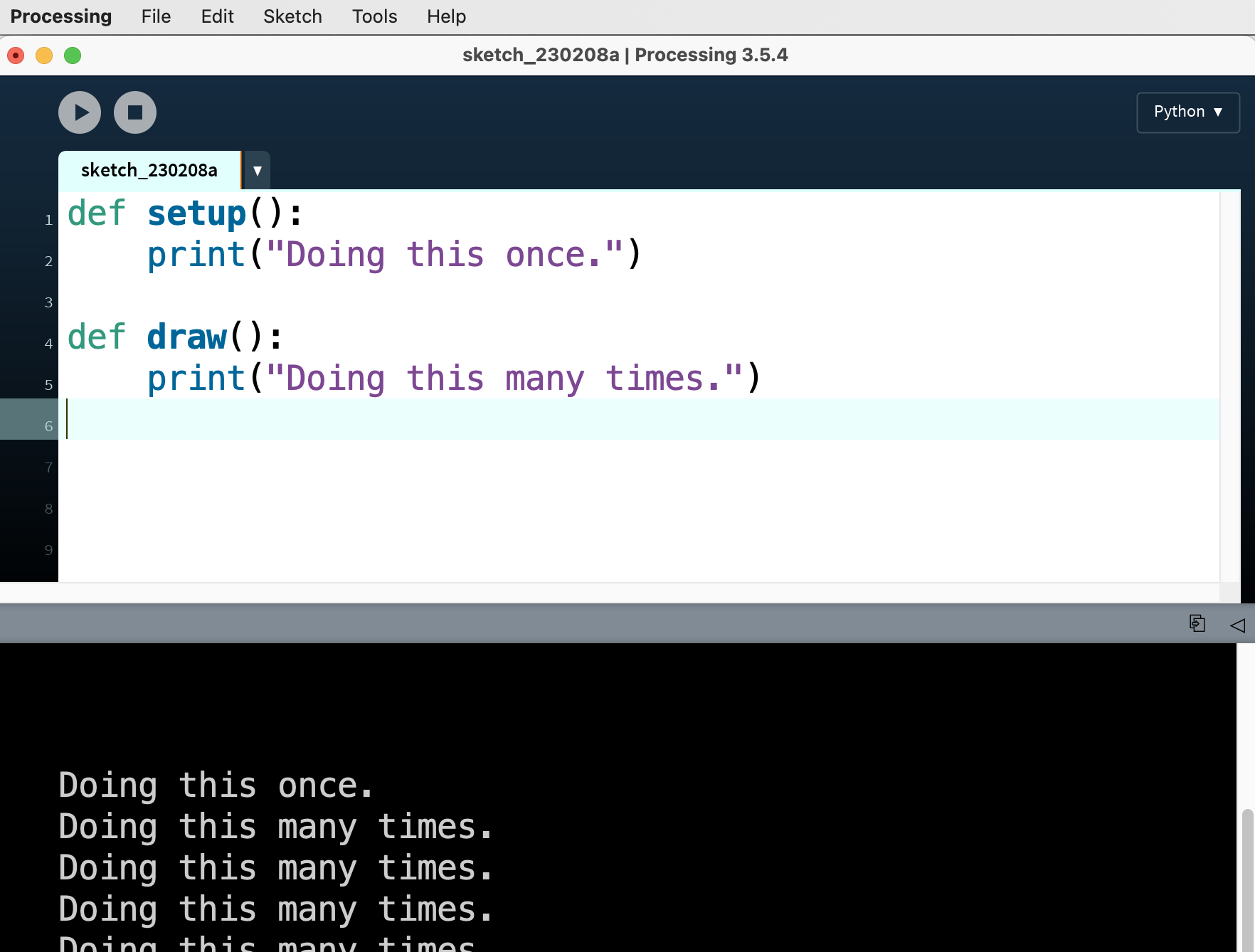

If you run this code and look in the Processing Console, you will see some interesting output. Press the Stop button (so that you are able to scroll back), scroll back to the top of the Console, and you should see something like this:

Notice that the code inside setup() happens only once, and the code inside draw() happens many times.

This code introduces a new command: print(). This command prints arbitrary text in the debugging window at the bottom of the PDE. You write this text as characters in double quotes “ ”, which are called strings. The most famous example of this in introductory programming is the well known "Hello, world!" example:
```
print("Hello, world!")
```
In addition to strings, we can also print variables:
```
x = 5
print(x)
```
This can be extremely useful for debugging later on when you are trying to figure out what the value of a variable is.

And we can combine words and variables using the plus sign (+). When the arguments to + are strings, it does not do arithmetic, but instead does string concatenation, conjoining together the text of the string with the value of the variable. Having one operator that can be used for more than one purpose is called operator overloading, and it can be very confusing, but it can also be a convenient shortcut. We'll try not to use too many other examples of operator overloading this semester.

But if you try to run this example:
```
x = 5
print("x is now equal to " + x)
```

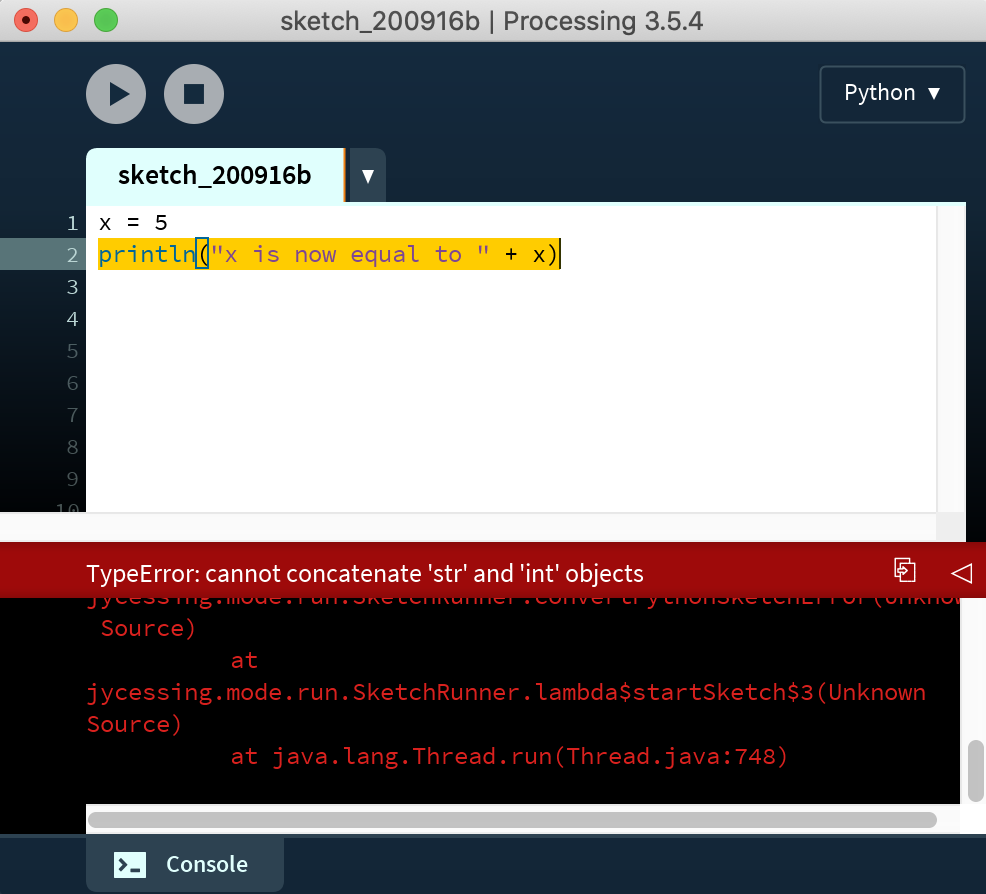

you should get an error that looks something like this:

We don't talk about errors enough in coding education. Most coding instruction shows you how to do things and presumes they will work. So when students encounter something that doesn't work they are often unprepared for how to proceed. As a computer programmer, you should get accustomed and even comfortable reading errors. Error messages are a form of communication between you and the person who created the tool that you're using. Error messages are that person's best effort to explain to you why something you tried to do does not comply with the usage patterns that they provided.

As a person creating software, you are not able to simply call tech support if something does not run as you'd expect, so it's important to try to develop the skill of reading error messages and understand what the system is trying to tell you about why it's not doing what you intended.

In this case, this is actually a very helpful and informative error message. Processing is showing you exactly where the problem is, and displaying for you an error message that Python generated. This code is trying to concatenate (conjoin) a string (the stuff in quotes) and an integer (the variable with a numeric value). A solution in this case is to convert the integer to a string. Python knows how to concatenate strings, but not mixed types. You do this by using the str() command from Python, like so:
```
x = 5
print("x is now equal to " + str(x))
```
which produces this result:

c. A rectangle that moves with the mouse

Returning to the original example, we can merge together the code that tries to draw a rectangle using mouseX with the above setup() and draw() code:
```
def setup():
    size(400,400)

def draw():
    background(255)
    stroke(50,50,255)
    fill(200,200,255)
    rect(mouseX,150,100,100)
```
We should always put size() inside setup() because we only need to do that once, and we put all the other draw code inside draw() so that it will happen many times per second. Now each time that Processing runs the draw(), the special variable mouseX will contain the current location of the mouse and the rectangle will be drawn there.

(jump back up to table of contents)

V. More interaction concepts

a. Framerate

This idea of doing things many times introduces a new concept called framerate.

We've talked about how your code now can create a sequence of static frames in succession. How frequently does it create these new frames? Processing provides a special variable to tell you this called frameRate. You can use print() to examine the value of this variable:
```
def draw():
    print(frameRate)
```
which would produce something like this:

As you can see, the frame rate is slightly changing all the time! This is because the actual frame rate (the number of times per second that Processing is able to run the draw() block) depends on things like how fast the computer's processor is, how many other programs are running, etc. As you can see there, the frame rate of that sketch is about 60 — that corresponds to the number of frames per second, or in other words, the number of times that draw() gets called per second. For reference, the frame rate of most cinema is 24 frames per second (or "fps").

In Processing, you can adjust this with:
```
frameRate(24) # 24 is now the number of frames per second
```
Note that the parameter here indicates the maximum frame rate. Processing may not be able to acheive that frame rate (due to processor speed, etc.) but that is what it will try to do.

b. Scope

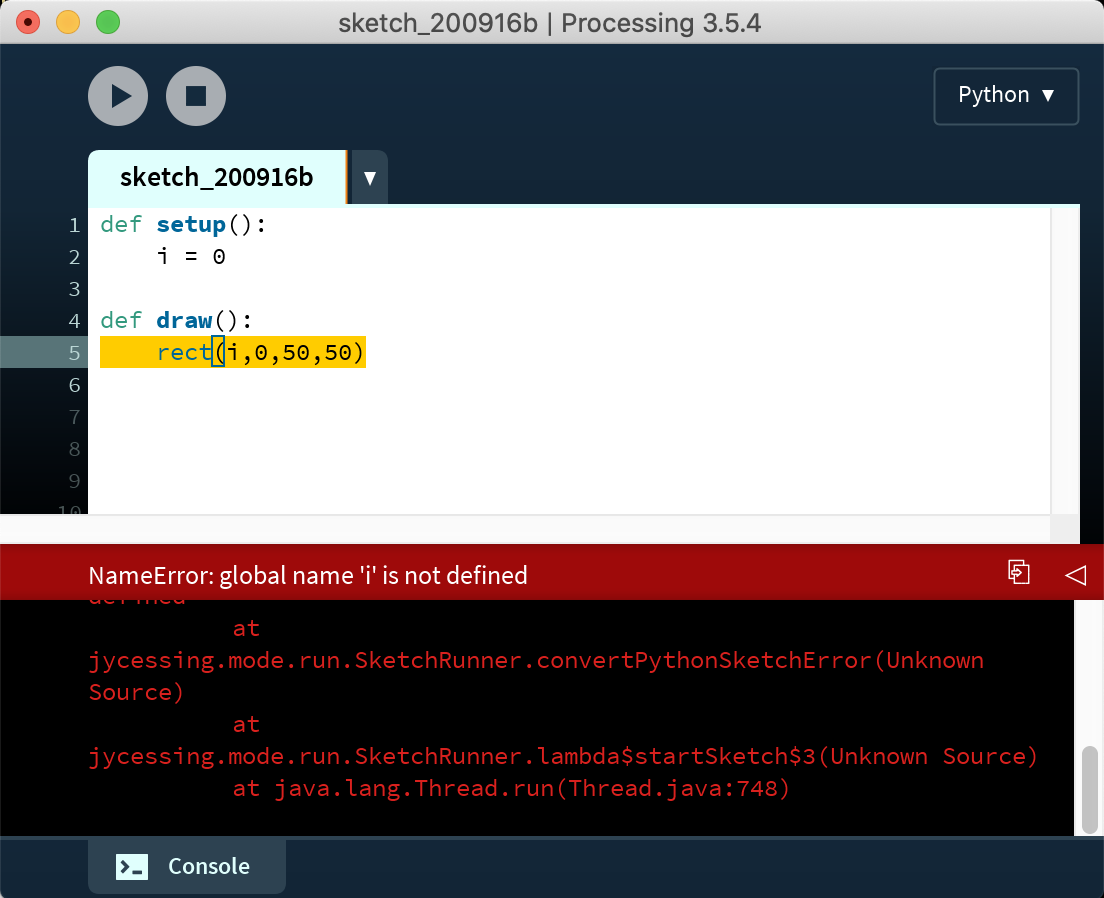

Using the setup() and draw() code blocks like this introduces a new concept called scope. This important term describes the parts of your sketch in which different variables are accessible. The following code gives an error message:
```
def setup():
    i = 0

def draw():
    rect(i,0,50,50)
```
Why? Because the scope of i is limited to setup(), or in other words, the variable can only be used inside setup(), meaning within the chunk of code that is indented together after the colon following setup(). In the above example, i is being used inside draw(), but the variable is not accessible there.

So another way of describing this would be: since the variable i is defined inside the setup() block, its scope is limited to that block and it is not accessible from within the draw() block.

To fix this error, you can move your declaration of i into global scope, in other words, outside of all indented code blocks. In that way, your variable will be accessible in all blocks. Like this:
```
i = 25
def setup():
    size(100,100)

def draw():
    rect(i,0,50,50)
```
This is called a global variable. Programmers usually don't like global variables. They create code that can be more confusing to read. But in Processing they are required.

Confusingly, whenever you assign a variable a value within a block, Python tries to create a new variable within that block. So for example, look what happens when you run this code:
```
i = 0
def setup():
    size(100,100)
    i = 25

def draw():
    rect(i,0,50,50)
```
You might think the rectangle would get drawn with x at 25, but it gets drawn with x at 0. Why? Because i = 25 inside setup() creates a new variable limited to that scope. The solution is the global keyword.

Important rule: Whenever you want to use a variable in more than one scope, you must initialize it outside of any other code block and then declare it to be global within every code block where you will modify it. So change the above code like this:
```
i = 0
def setup():
    size(100,100)
    global i
    i = 25

def draw():
    rect(i,0,50,50)
```
and now it will do the expected thing.

So to summarize: create your variables in global space (up top, no indentation), and then declare them as global within each block where you want to use them.

(jump back up to table of contents)

c. Asking "when?": How to use `setup()` and `draw()`

When? Now that we've introduced the concept of frames into our sketches, and our programs unfold in time, it begs an imporant question. In regards to a command or code instruction, we can now ask: When does that happen? Before today, this question didn't really matter. Over the last two weeks, the only sense of time that mattered was the order in which your instructions were run — from top to bottom, which created visual objects from back to front — but all that happened in a split second and didn't really matter in terms of "human" time. But now the sketch has a duration that we humans can perceive, and things can happen over time. So, when?

The original example of this lesson draws a rectangle at the x location of the mouse:
```
def setup():
    size(400,400)

def draw():
    background(255)
    stroke(50,50,255)
    fill(200,200,255)
    rect(mouseX,150,100,100)
```
But look what happens if we move background() out of draw() and into setup():
```
def setup():
    size(400,400)
    background(255)

def draw():
    stroke(50,50,255)
    fill(200,200,255)
    rect(mouseX,150,100,100)
```
Running this now leaves a trail of rectangles from all previous mouse positions. Why? Because background() only runs once, only wiping the screen at the beginning of the program, but Processing runs the draw() block many times per second, each time creating a frame, and without background(), Processing draws new rectangles without erasing the previous ones. Depending on your intention, there are times when you may or may not want this effect.

As another example, think about how this relates to random(). You used this command to set variables to random values. But now whenever you use random() you must ask yourself an important question when is the random command being called? When is that random number being chosen? Consider this example:
```
def setup():
    size(400,400)
    background(255)
    r = random(0,255)
    g = random(0,255)
    b = random(0,255)
    fill(r,g,b)

def draw():
    rect(150,150,100,100)
```
Each time you stop and run that sketch, the rectangle will have a different color. Three random values are chosen inside setup() and the fill color is set once at the beginning of the sketch.

Now let's make a slight change:
```
def setup():
    size(400,400)
    background(255)

def draw():
    r = random(0,255)
    g = random(0,255)
    b = random(0,255)
    fill(r,g,b)
    rect(150,150,100,100)
```
We have moved the selection of random values and the setting of the fill color into draw(), meaning that new random values are selected and the fill color is set each frame. This creates a very different effect.

Again, there are different times that you may want each of these different behaviors.

d. `pmouseX` and `pmouseY`

So far we've talked about the special Processing variables mouseX and mouseY. We saw that as the mouse moves, Processing automatically sets the value of these variables to the x and y position of the mouse in every frame.

There are several other special variables that Processing provides us, and now I want to talk about two more:
- pmouseX, and
- pmouseY
Every frame, Processing sets the values of these variables to the x and y position that the mouse was at on the previous frame. This can be very useful for achieving some interesting effects.

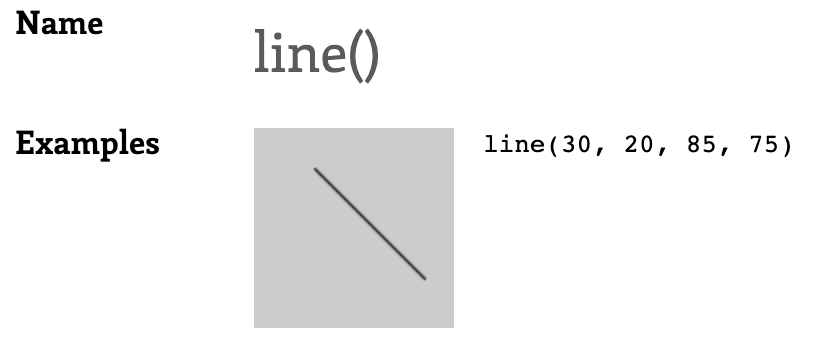

Let's look at the line() command. From the reference:

Draws a line (a direct path between two points) to the screen.

Syntax
line(x1, y1, x2, y2)
Parameters
x1 float: x-coordinate of the first point
y1 float: y-coordinate of the first point
x2 float: x-coordinate of the second point
y2 float: y-coordinate of the second point

Putting these two things together, let's try to draw a line from the location of the mouse in the previous frame to the location of the mouse in the current frame:
```
def setup():
    size(400, 400)
    strokeWeight(10)
    stroke(155,155,255,50)

def draw():
    background(255)
    line(pmouseX, pmouseY, mouseX, mouseY)
```
You might see a little something there, but not much. Why? Because the frame rate is so fast that as the user moves the mouse, even quickly, there is still only a small distance between the location of the mouse on the previous frame and the location of the mouse on the current frame. Let's lower the frame rate to make this a little easier to see:
```
def setup():
    size(400, 400)
    strokeWeight(10)
    stroke(155,155,255,50)
    frameRate(4)

def draw():
    background(255)
    line(pmouseX, pmouseY, mouseX, mouseY)
```
Now that there are only four frames per second, we can move the mouse quickly and better see the relationship between the location of the mouse in the previous frame and the location of the mouse in the current frame.
There is a lot that can be done with this principle. Let's use the distance between the previous and current mouse positions to do something besides draw a line, like specify the width and height of a shape.

We can think about this with an illustration:

Simply by subtracting the previous mouse position from the current mouse position, we are calculating the distance that the mouse moved between these two frames.

Writing that up in code form:
```
def setup():
    size(400, 400)
    noStroke()
    fill(155, 155, 255, 50)
    frameRate(4)

def draw():
    background(255)
    ellipse(200, 200, mouseX-pmouseX, mouseY-pmouseY)
```
Distance is difference. Distance is calculated by subtracting. (What about negative values? Fortunately Processing handles that for us in this case, but ideally we should do an absolute value here to make sure we only have positive values. The need for this will be eliminated when we use dist() below.)

Now let's run that and see what happens. We are using the distance as the width and height of the ellipse. Try moving the mouse horizontally, vertivally, and diagonally to see how the width and height are affected. As you can see, distance is also related to speed. The faster the mouse is moved, the more distance it covers between frames.
Now what if we want to do something a little more complicated with distance? What if we wanted to set the thickness of a line based on how fast the user is moving the mouse. So, the faster the movement (the more distance between frames), the thicker the line.

As many of you have already experimented with, line thickness is specified with strokeWeight(), and as you can see from the Processing reference, this takes one parameter, which corresponds to the thickness of the line in pixels. Our distance calculation above produced two values (distance in x and distance in y). How can we get just one value? Simple subtraction was enough for determining distance in x and in y separately, but to actually determine the distance between any two arbitrary points requires some more complicated geometry calculations.

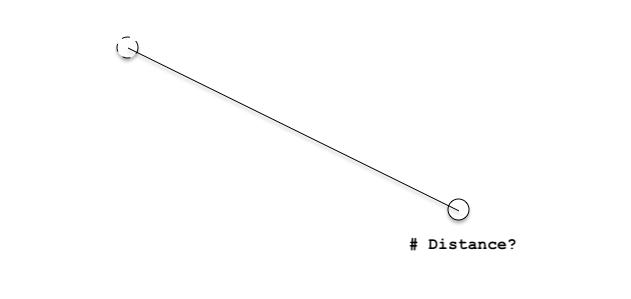

Anyone remember how to calculate the distance of this line? (Hint: your old friend Pythagoras ...)

Fortunately, we don't have to worry about that because Processing offers us a shortcut for doing this calculation: dist().

As you can see from the reference, dist() takes four parameters: the x and y values of one point, and the x and y values of another. And it automatically calculates the distance (in pixels) between them.

So how would we calculate the distance between the mouse position of the previous frame and the mouse position of the current frame?
```
dist(pmouseX,pmouseY, mouseX,mouseY)
```
Putting that into a complete sketch:
```
def setup():
    size(400, 400)
    stroke(155, 155, 255, 50)
    frameRate(4)

def draw():
    background(255)

    d = dist(pmouseX,pmouseY, mouseX,mouseY)
    strokeWeight(d)

    line(pmouseX,pmouseY, mouseX,mouseY)
```
There are some issues with this. For one, the line gets really thick really quickly! Also, what if we wanted to create something that felt kind of like a pen or a brush, in the sense that the line got thinner as the user moved faster, and thicker as the user moved slower. Fixing these two issues leads us to the next topic ...

(jump back up to table of contents)

VI. Map

To address the above questions, let's look at map(). This is a simple thing that can be very useful, but it can be a little tricky to understand.

map() takes a variable and translates (or "maps") it from one range of values proportionally into another range of values. It will be very useful to anyone who elects to do a data visualization for their midterm project.
map()takes a number, in some range, and translates ("maps") that proportionally into some other range.

As the reference explains, it takes four parameters:
```
map(value, low1, high1, low2, high2)
```
It assumes that value is between low1 and high1, and then it translates that into the range of low2 and high2.
It might be best to start by illustrating this with some examples (highlight the line for the answer):
- map( 5, 0,10, 0,100 ) # Answer: 50
- map( 5, 0,10, 50,100 ) # Answer: 75
- map( 5, 0,10, 60,70 ) # Answer: 65
- map( 3, 0,4, 0,100 ) # Answer: 75
- You can also go from high to low, instead of low to high:
  map( 3, 0,4, 100,0 ) # Answer: 25
Here are some practical examples that you can re-use in your code:
- If you wanted a rectangle to move up/down in the same direction as the mouse, but limit it to a region smaller than the full window, you could do this:
```
rectY = map(mouseY, 0,height, 100,200)
rect( 200,rectY, 50,50 )
```
- If you wanted a rectangle to move left/right in the opposite direction as the mouse, you could do this:
```
rectX = map(mouseX, 0,width, width,0)
rect( rectX,200, 50,50 )
```
- If you wanted to create a fill color controlled by the mouse x that was always shades of red, you could do this:
```
r = map(mouseX, 0,width, 0,255)
fill(r,0,0)
```
The following sketch illustrates some things that you can do with this command:
week03_map_example.pyde

Returning the original example that motivated this, how could we make a line that behaves somewhat like a pen or a brush, in that the line gets thinner as the user moved faster, and thicker as the user moved slower. We can use pmouseX and pmouseY along with map():

def setup():
     size(600, 600)
     stroke(155, 155, 255, 50)
     background(255)

def draw():

    distance = dist(pmouseX, pmouseY, mouseX, mouseY)

    mappedDistance = map(distance, 0,200, 40,1)
    strokeWeight( max(mappedDistance,1) ) # using max() to set a maximum value here

    line(pmouseX, pmouseY, mouseX, mouseY)

Update: In the last moments of class we talked about a bug that can come up in running the above code snippet. The issue is that if the user moves the mouse very quickly, the distance that the mouse moves from one frame to the next may exceed 200, in which case the map() command above would map that into a negative value, and it is invalid to pass a negative value to strokeWeight().

There are two possible solutions:

One, you can use the max() command, as I have done in the above code snippet. The max() command always returns the larger value between two possible values. Calling max() as I have done above with mappedDistance and 1 means that if mappedDistance is negative, the value 1 will be larger, so max() will return that, preventing a negative value from ever being passed in to strokeWeight().

Another very similar solution would be to use constrain(). This command works almost the same as max(), but it allows you to specify a minimum and maximum value at the same time. That approach would look similar to the above, with one line changed:
```
def setup():
     size(600, 600)
     stroke(155, 155, 255, 50)
     background(255)

def draw():

    distance = dist(pmouseX, pmouseY, mouseX, mouseY)

    mappedDistance = map(distance, 0,200, 40,1)
    strokeWeight( constrain(mappedDistance,1,40) ) # using max() to set a maximum value here

    line(pmouseX, pmouseY, mouseX, mouseY)
```
Hope that helps!
Another application of this is to create a parallax effect using map() with raster images:
week03_parallax.pyde
That sketch uses three images. You can download them here:

Code Toolkit: Python, Spring 2026

Week 3 — Wednesday, February 4 — Class notes

I. Review of last week

II. Homework review

III. Interaction

IV. Adding interactivity with Processing

a. New syntax: setup() and draw() blocks

b. New command print(), and string concatenation

c. A rectangle that moves with the mouse

V. More interaction concepts

a. Framerate

b. Scope

c. Asking "when?": How to use setup() and draw()

d. pmouseX and pmouseY

VI. Map

a. New syntax: `setup()` and `draw()` blocks

b. New command `print()`, and string concatenation

c. Asking "when?": How to use `setup()` and `draw()`

d. `pmouseX` and `pmouseY`
